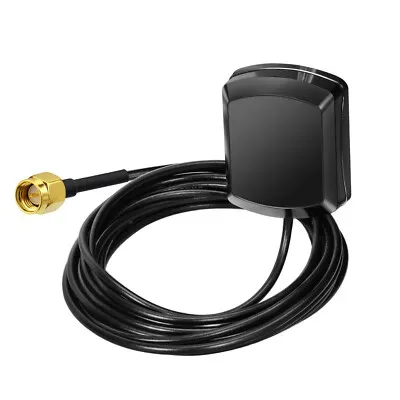

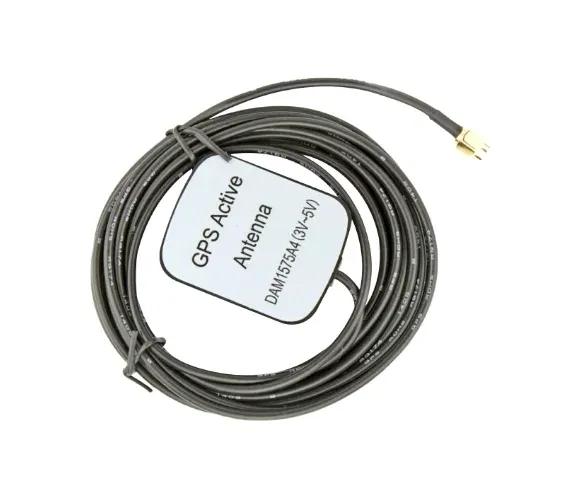

GPS Active Antenna

GPS Active Antenna magnetic base

 with 5m cable and standard SMA connector.

• Product Model : DAM 1575A2 3.3 / 5 V
• Dielectric Antenna
• Center Frequency 1575.42MHz±3 MHz
• V.S.W.R 1.5:1
• Band Width ±5 MHz
• Impedance 50 ohm
• Peak Gain > 3dBic Based on 7×7cm ground plane
• Gain Coverage > -4dBic at –90°< 0 < 90° (over 75% Volume)
• Polarization RHCP
• LNA/Filter
• LNA Gain (Without cable) 28dB Typical
• Noise Figure 1.5dB
• Filter Out Band Attenuation (f0=1575.42 MHZ)
